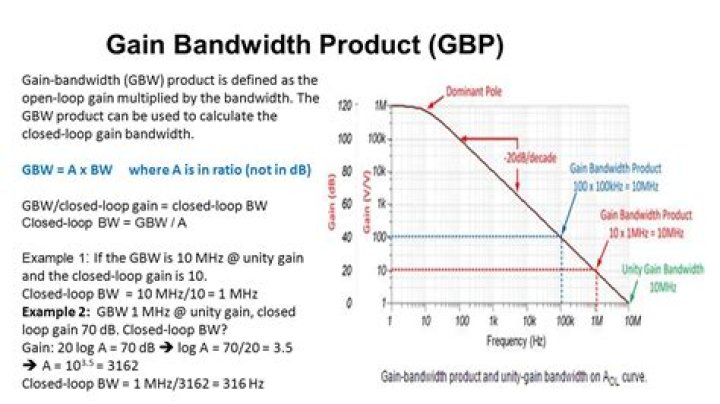

Gain – Bandwidth Product: It is the bandwidth of the op-amp when the voltage gain is 1. For 741: 1MHz (approx.) Also called as: Closed loop bandwidth or. Unity gain bandwidth or.
What is gain bandwidth of op amp?
The forward gain, G is defined as the gain of the op-amp when a signal is fed differentially into the amplifier with no negative feedback applied. This gain is ideally infinite at all frequencies, but in a real op-amp is finite, and depends on the frequency.
How is op amp gain bandwidth calculated?
Open-loop Frequency Response Curve For example, from the graph above the gain of the amplifier at 100kHz is given as 20dB or 10, then the gain bandwidth product is calculated as: GBP = A x BW = 10 x 100,000Hz = 1,000,000.
What is gain bandwidth and slew rate?
When feedback is provided, as in an inverting amplifier, the gain is given by G = – Rf / R1; however, it must be recognized that the magnitude of this gain can never exceed the gain as given by the gain-bandwidth product. slew rate defines the maximum rate at which the output voltage can change with time.
How do you calculate gain bandwidth?
Gain-bandwidth Product= Gain x Frequency An example of gain-bandwidth product calculation: If an op amp has an open-loop gain of 20 at 100KHz, it has a gain of 10 at 200KHz, a gain of 5 at 400KHz, and a gain of 1 at 2MHz. In each calculation, the gain-bandwidth product is equal to the gain x frequency= 2MHz.
What is small signal bandwidth of op amp?
The −3 dB unity-gain bandwidth of an amplifier with a small signal applied, usually 200 mV p-p. A low level signal is used to determine bandwith because this eliminates the effects of slew rate limit on the signal.
Does frequency affect op-amp gain?
An op-amp starts to lose gain at a low frequency, but because its initial gain is so high, it can still function as an effective amplifier at higher frequencies.
