The tie rod transmits force from the steering centre link or the rack gear to the steering knuckle, causing the wheels to turn. The outer tie rod end connects with an adjusting sleeve, which allows the length of the tie rod to be adjustable. This adjustment is used to set a vehicle’s “toe”, a critical alignment angle.
How much is a tie rod adjustment?
The price of tie rods, parts and labor can vary from vehicle to vehicle. The average car can probably get a tie rod replaced in about an hour labor plus about $80 for the part, so about $170. Add an alignment and the total price may be closer to $260.
How do you adjust inner and outer tie rods?
Adjust the toe by turning the inner tie rod on a rack and pinion steering system and by turning the adjusting sleeve on a parallelogram linkage system. To adjust the toe on a vehicle with a typical rack and pinion system, loosen the nut on the inner tie rod about a half-inch from the outer tie rod end.
Are outer tie rods supposed to move?
Check the inner tie rod ends, pushing them front to rear. If any free play is observed in a joint, it is worn and should be replaced. 2. If the outer tie rod ends have any vertical movement or the inner tie rod ends have any horizontal movement, the tie rod end with the observed movement should be replaced.

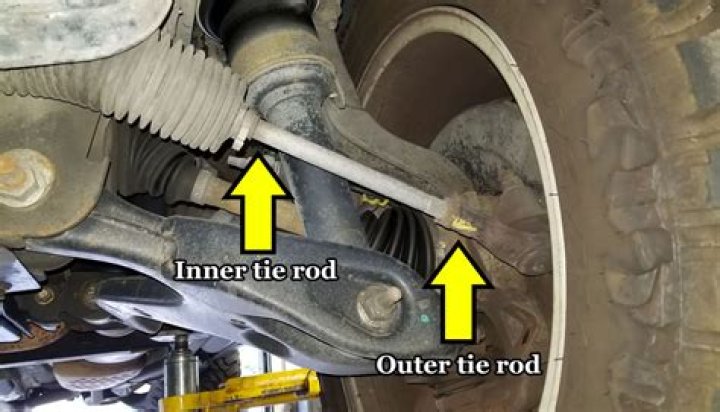

What is outer tie rod?
The outer tie rod is what turns the wheel. It is the final pivot point initiating the wheel to turn. From the center of the vehicle, it is located farther out than the inner rod and is accordingly named “outer tie rod.”
How do you know if your outer tie rod is bad?
When your tie rods go bad, the symptom you’re most likely to experience first is a vibration or shaking sensation in your steering wheel. You may also hear associated clunking and rattling noises, especially when turning the vehicle at low speeds. These sounds are caused by tie rods that are starting to wear out.
How long does it take to change outer tie rods?
The inner and outer tie rods on your vehicle can take up to some time. The dealership will change out the tie rod ends and then perform a vehicle alignment, so the time there will be to the upper 3 to 4 hours.
How long do outer tie rods last?
How long do tie rods last? Tie rods can last for several years. In fact, you may never have to replace your tie rods. The conditions you drive in play a large role in the lifespan of tie rods.
How do you adjust a tie rod?
Inner Tie Rod: The inner tie rod is rotated to adjust toe on most rack and pinion systems. Loosen the tie rod lock nut, and then the clamp holding the bellows boot to the tie rod. Rotate the inner tie rod to adjust toe. Split the total toe between the two sides.
What are the symptoms of a bad tie rod?
The most noticeable symptom of a bad tie rod is a knocking sound coming from the front end of the vehicle when driving slowly and making a sharp turn. Turning into a parking spot often results in this symptom.
What tools do I need to replace tie rod ends?
Tools needed to replace inner and outter tie rod ends. You will need a 18 mm wrench or socket, 7/8 wrench a tie rod end separator and a inner tie rod tool to get the inner tie rod off, you will also need a pair of pliers to get the clamps off or the inner boot.
How do you remove the tie rod end?
Step 1: Park the car on a flat surface and loosen the lug nuts. Step 2: Raise the vehicle. Step 3: Remove the lug nuts and the tire. Step 4: Turn the steering wheel to the appropriate direction. Step 5: Prepare to remove the tie rod end. Step 6: Remove the cotter pin from the tie rod end. Step 7: Remove the old tie rod end.
