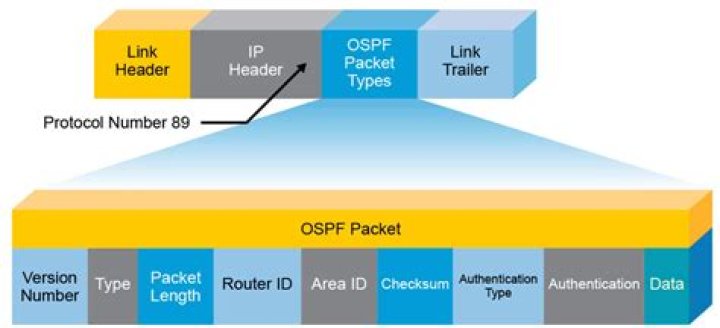

OSPF packet header Type—OSPF packet type from 1 to 5, corresponding to hello, DD, LSR, LSU, and LSAck, respectively. Packet length—Total length of the OSPF packet in bytes, including the header. Router ID—ID of the advertising router. Area ID—ID of the area where the advertising router resides.
What are the packet types does OSPF use?
Packet types for OSPF
- Hello packet. This packet is sent by the OMPROUTED server to discover OSPF neighbor routers and to establish bidirectional communications with them.
- Database description packet.
- Link-state update packet.
- Link-state request packet.
- Link-state acknowledgment packet.
What is IP packet format?
Each IP packet contains both a header (20 or 24 bytes long) and data (variable length). The header includes the IP addresses of the source and destination, plus other fields that help to route the packet. The data is the actual content, such as a string of letters or part of a webpage. A diagram of an IP packet.
What is DD packet in OSPF?
The OSPF Database Description packet. Interface MTU is the size, in octets, of the largest IP packet that can be sent out the originator’s interface without fragmentation. This field will be set to 0x0000 when the packet is sent over virtual links.
How many LSA are in OSPF?
We also saw the most common LSA packets found in OSPF networks. In this article we’ll be diving deeper to analyse all eleven OSPF LSA Types using network network diagrams and examples to help understand when each LSA type is used and how they keep the OSPF network updated.
How do we configure OSPF routing protocol?
Configuring OSPF in a Single Area
- Use the command router ospf process ID to start OSPF.
- Use the network command to enable the interfaces.
- Identify area assignments.
- (Optional) Assign the router ID. Example 3-1 displays OSPF with a process ID of 1 and places all interfaces configured with an IP address in area 0.
How do I find my LSA type in OSPF?
Verification. By using the show ip ospf database we can look at the LSDB and we can see the type 1 router LSAs, type 2 network LSAs and the type 3 summary LSAs here.
What is OSPF LSA type1?
LSA Type 1 (Router LSA) packets are sent between routers within the same area of origin and do not leave the area. An OSPF router uses LSA Type 1 packets to describe its own interfaces but also carries information about its neighbors to adjacent routers in the same area.
What is router ID in OSPF?
The OSPF Router ID is used to provide a unique identity to the OSPF Router. OSPF Router ID is an IPv4 address (32-bit binary number) assigned to each router running the OSPF protocol. If there is no Loopback Interfaces configured, the highest IP address on its active interfaces is selected as the OSPF Router ID.
What are the different types of OSPF LSA?
ASBRs run both OSPF and another routing protocol, such as RIP or BGP. There are different types of LSAs exchanged depending upon the areas in which devices operating OSPF reside. Type-1 (Router Link Advertisement) – This is a Type-1 LSA exchanged by the routers which belongs to a same area.
What are the different types of OSPF packets?
OSPF packet types 1 Hello packet: It is the type 1 packet. 2 Given below is the sample packet of the OSPF hello packet: 3 Database descriptor packet: For the link state routing protocols, it is essential that the link state database for all the routers remain synchronized.
Can OSPF be used for IPv4 and IPv6 routing?
If an organization wanted to use OSPF for both their IPv4 and IPv6 routing protocol, then they would likely use OSPFv2 for their IPv4 routing and OSPFv3 for their IPv6 routing. This would give the organization dual control planes for dual forwarding protocols.
What is the difference between OSPFv2 and ospfspfv3?
OSPFv3 Packet and LSA formats differ from OSPFv2. Specifically, OSPFv3 adds two new LSA types for Link (0x0008, tells neighbors about link-local addresses and IPv6 prefixes on link) and Intra-Area-Prefix (0x2009, IPv6 prefixes connected to a router).
