Quadrature detector In quadrature detectors, the received FM signal is split into two signals. The two signals are then multiplied together in an analog or digital device, which serves as a phase detector; that is, a device whose output is proportional to the phase difference between two signals.
Why is quadrature detected?
In order to distinguish between negative and positive frequencies relative to the carrier frequency (i.e. the frequency at the center of the spectrum), quadrature detection must be employed. Quadrature detection involves the collection of time domain NMR data on both the x and y axes of the rotating frame of reference.
What is phase quadrature detection used for?
Quadrature phase detection is widely used in ultrasound Doppler systems to obtain directional information about flow velocities in blood vessels.
How does a quadrature demodulator work?

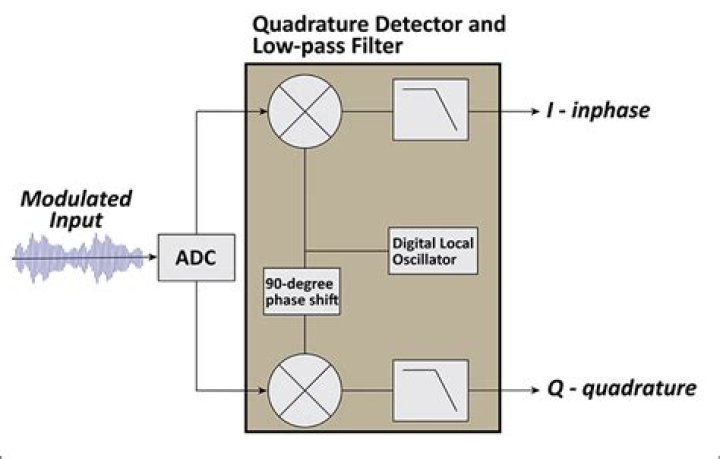

Quadrature demodulation uses two reference signals separated by 90° of phase, along with two multipliers and two low-pass filters, to generate I and Q demodulated waveforms.
What is quadrature distortion?
Quadrature distortion: Distortion resulting from the asymmetry of sidebands used in vestigial sideband television transmission. Quadrature distortion appears when envelope detection is used, but can eliminated by using a synchronous demodulator.
What are RF detectors used for?
RF detectors are used primarily to measure and control RF power in wireless systems. Why are power measurement and control so important? RF power, rather than voltage, is the primary measure of a wireless signal.
What is quadrature voltage?
When φ happens to be such that the in-phase component is zero, the current and voltage sinusoids are said to be in quadrature, which means they are orthogonal to each other. In that case, no average (active) electrical power is consumed.
What is demodulation in ultrasound?
There are a number of methods of demodulation in ultrasound although two ultrasound signal processing techniques are used predominately nowadays. It has the exact same intent, to remove the carrier signal and reconstruct the signal envelope. For this reason the process is often called “demodulation” or “detection”.
What is quadrature current?
What is quadrature sampling?
Quadrature-sampling is the process of digitizing a continuous (analog) bandpass signal and translating its spectrum to be centered at zero Hz. Let’s see how this popular process works by thinking of a continuous bandpass signal, of bandwidth B, centered about a carrier frequency of fc Hz.
What is the function of the quadrature demodulator in FM receiver?
Quadrature Detectors The quadrature detector is probably the single most widely used FM demodulator. It uses a phase-shift circuit to produce a phase shift of 90° at the unmodulated carrier frequency. This detector is primarily used in TV demodulation and is used in some FM radio stations.
What is quadrature frequency?
Each narrowband frequency modulated signal carries the information about an independent message signal that contains a single frequency component. Since the carriers are in phase quadrature, the modulation scheme described is referred to as, ‘Quadrature frequency modulation’.
How does a quadrature detector work?
A quadrature detector splits the signal, that is to be demodulated, up into two signals. The first signal remains unchanged and is applied to the input of a phase detector. The second signals is passed through a capacitor. Read remaining answer here.
What is quadrature detection in NMR?
NMR Part II, Quadrature Detection. Quadrature detection uses two detector channels separated by 90 degrees. This distinguishes the direction of rotation (clockwise or counterclockwise) in the rotating frame of the spectrometer. This document shows how the quadrature signal is transformed to produce the real and imaginary spectra.
Can quadrature sampling detectors work at very low frequencies?
This thesis also discusses the design of quadrature sampling detector and performance measurement of the quadrature detector at these extremely low frequencies. The results of the quadrature detection hardware testing show that it is indeed possible to use a quadrature detector at such low frequencies.
How are quadrature circuits implemented in analog television receivers?
As implemented in analog television receivers, quadrature circuits provided, in a single stage, good AM rejection, linear FM detection, plus a high-level output signal requiring no additional voltage amplification before the output stage.
