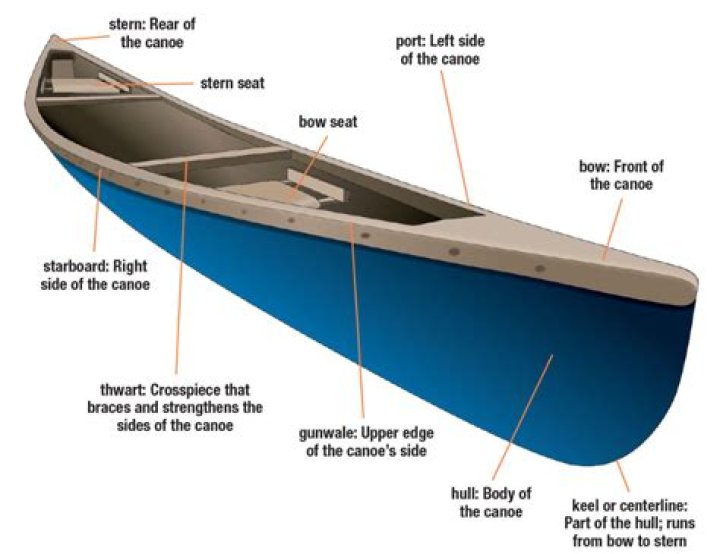

Parts of a Boat From a Side View

  • Bow : Front of a boat.
  • Stern : Rear of a boat.
  • Starboard : Right side of a boat.
  • Port : Left side of a boat.
  • Hull : Body of a boat.
  • Gunwale : Upper edge of boat’s side (generally pronounced gunnel)
  • Cleat : Metal fitting on which a rope can be fastened.

What are the parts of a boat hull called?

Bilge: A compartment at the lowest point of a boat’s hull. Bow: The front of a boat is called the bow. Cleats: The metal fittings that secure ropes to the vessel are called cleats. Gunwales: The upper edges of the boat’s hull that provide extra rigidity for the hull are called the gunwales.

How are fiberglass boats built?

Most fiberglass boats are built from a female mold that accepts multiple layers of fiberglass cloth or matt and resin that eventually cure together to form a hull shape. Next, a thick layer of high-quality resin called gelcoat is sprayed into the mold.

Do fiberglass boats have wood in them?

Fiberglass Boats. Most fiberglass boats have wood in them. Sailboats travel more slowly and depend more on hull structure for strength, but even so they often have glass-encapsulated wood stringers, engine beds, and lots of balsa or plywood cored decks.

How thick are fiberglass boat hulls?

Fiberglass is very strong. A standard pice of PCB is 1.6mm thick. Try breaking a non perforated piece, you’ll be surprised what it takes to do.

What are the main parts of a boat made of fiberglass?

With fiberglass boat building, however, the major components of the boat – the hull, deck, liner, and large parts like consoles—are molded from fiberglass. Usually, this means starting with a female mold.

What has happened to fiberglass boat construction?

There has been a transition from conventional fiberglass methods to a host of exotic materials and techniques which can befuddle even the experienced yachtsman with buzzwords and jargon. The concept remains essentially the same, however.

How are boat hulls constructed?

Boat construction always starts with a hull mold. In this case, a perfectly clean, highly polished two-piece mold to ensure no imperfections make it into the final composite. Layers of gelcoat are sprayed onto the mold to form the outer layer of each hull.

Can I use plywood to build a fiberglass boat?

The risk of increased costs and lost time on the water associated with using plywood in a new fiberglass boat are far too high to buy one using them. The resin used to build your boat holds everything together.
