A. Using Geometry Calculation

  1. Create an X field and Y field on your attribute table.
  2. Right Click the X field and click the Calculate Geometry.
  3. Then Select the “X coordinate of Centroid” and your desired units.
  4. Repeat the process from 2 to 3 for the Y field.

How do I create a polygon with coordinates in ArcGIS?

How To: Create a polygon from an XY data table

  1. In ArcMap, open a new blank project.
  2. In ArcToolbox, navigate to Conversion Tools > Excel > Excel To Table.
  3. In the Input Excel File, browse to the XY data sheet to convert.
  4. Set a name and location for the Output Table.
  5. Click OK to execute the tool.

What is a centroid ArcGIS?

From wiki.gis.com. Centroid of a triangle. In geometry, the centroid, geometric center, or barycenter of a plane figure X is the intersection of all straight lines that divide X into two parts of equal moment about the line. Informally, it is the “average” of all points of X.

How do you find the centroid of a polygon?

The centroid (a.k.a. the center of mass, or center of gravity) of a polygon can be computed as the weighted sum of the centroids of a partition of the polygon into triangles. The centroid of a triangle is simply the average of its three vertices, i.e., it has coordinates (x1 + x2 + x3)/3 and (y1 + y2 + y3)/3.

How do I convert polygons to points in ArcGIS?

  1. In ArcMap, click the Tools menu and click Customize.
  2. Click the Commands tab.
  3. In the Categories list, choose PLTS Editing.
  4. In the Commands list, click and drag the PLTS Polygon to Point tool. to a toolbar.
  5. Click Close.

How do I convert a polygon to a point in ArcGIS pro?

on the Manage Features window. Select the polygon features you want to convert to points. In the Feature Manager window, click the Create tab. Select the point template you want to use for the polygon conversion.

How do I create a polygon shapefile in ArcGIS?

Creating a new shapefile

  1. Select a folder or folder connection in the Catalog tree.
  2. Click the File menu, point to New, then click Shapefile.
  3. Click in the Name text box and type a name for the new shapefile.
  4. Click the Feature Type drop-down arrow and click the type of geometry the shapefile will contain.

How do I create a polygon layer in ArcGIS?

To construct polygons, select the polyline features from which you want to create the polygons, choose a feature template, and click Construct.

  1. If the current map does not contain a polygon feature layer, add it.
  2. On the Edit tab, in the Features group, click Modify .
  3. Expand Construct and click Construct Polygons .

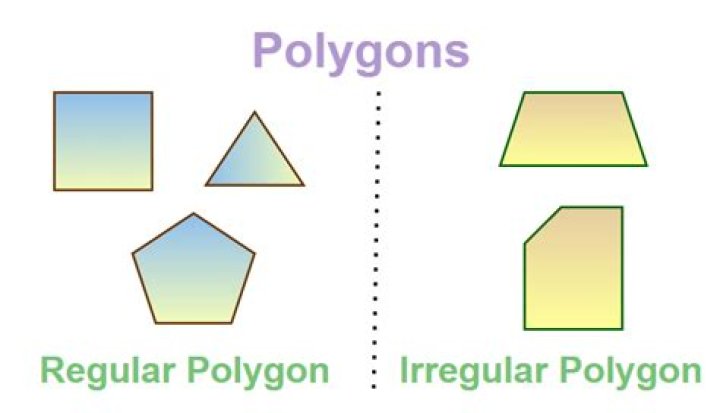

What is the center of a polygon?

The center of a regular polygon is the point from which all the vertices are equidistant. The radius of a regular polygon is a segment with one endpoint at the center and the other endpoint at one of the vertices.

How do I convert polygons to points in Arcgis?

How do I convert a polygon to a line in ArcGIS?

Procedure

  1. Start ArcMap.
  2. Add the polygon feature class, shapefile or coverage to the map.
  3. Convert the polygon to a polyline. A.
  4. Double-click on the line layer symbol in the Table of Contents.
  5. If symbolizing the lines as cased, right-click on the layer in the Table of Contents and choose ‘Use Symbol Levels’.

How do you create a centroid of a polygon in ArcGIS pro?

Right-click the Longitude or Latitude field header in the attribute table, and select Calculate Geometry to open the Calculate Geometry Attributes geoprocessing pane.

  1. Select Longitude from the drop-down list for Target Field.
  2. Select Centroid x-coordinate from the drop-down list for Property.
